Description

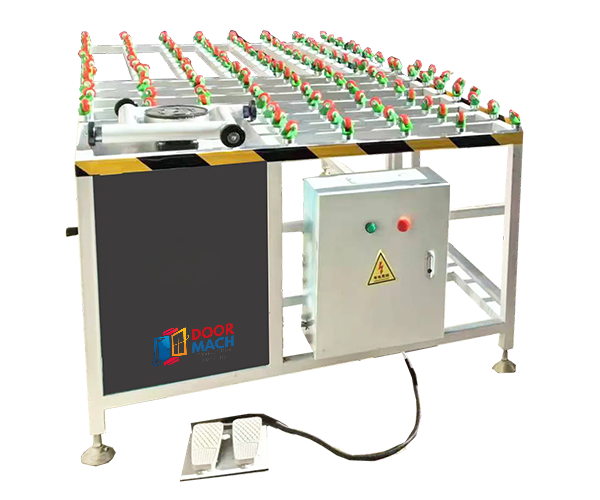

Insulating Glass Machinery Rotated Sealant Spreading Table is used for fixing and rotating glass when manual coating the outside of IG glass.
1) The supporting arm can be adjusted based on glass dimension.
2) The support device is equipped with vacuum chuck. So no manual holding is needed on spreading.
3) Operators are capable to operate the footswitch for control the lifting and rotating of glass about the 0~90 degree rotation as
to complete sealing of glass edge.
4) The machine is simple in operating procedures and high in working efficiency.
1) The supporting arm can be adjusted based on glass dimension.
2) The support device is equipped with vacuum chuck. So no manual holding is needed on spreading.
3) Operators are capable to operate the footswitch for control the lifting and rotating of glass about the 0~90 degree rotation as
to complete sealing of glass edge.
4) The machine is simple in operating procedures and high in working efficiency.
| Item. | Spec. |
| Air pressure | 0.5~0.8MPa |
| Rotation speed | 4r/min |
| Power supply | 380V 50Hz |
| Total power | 0.37Kw |
| Motor power | 0.12Kw |
| Operating dimension | 1500*1500mm |
| Dimension | 600*550*985mm |
| Min. glass size | 175mm*175mm |
