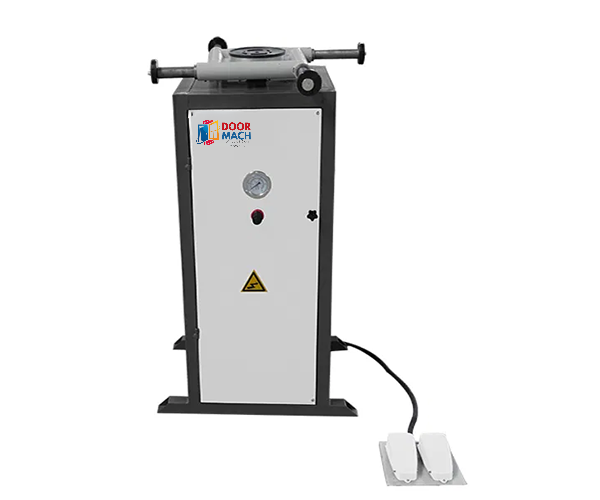

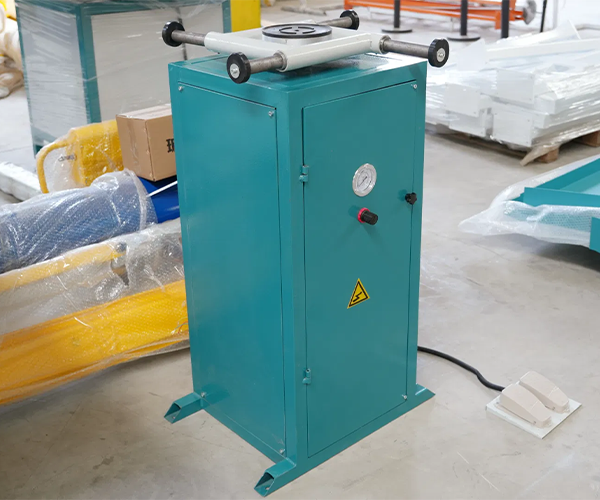

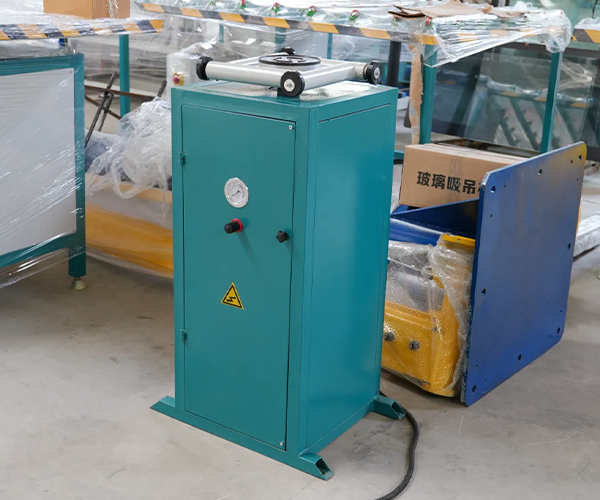

Manual Insulating Glass Rotated Sealant Spreading Table

Description

The insulating glass sealant rotary coating table is a special equipment that seals the outer sealant of insulating glass in a horizontal position and is used in conjunction with Two-component Manual Horizontal Rotated Sealant Spreading Table Coating Equipment. The processing method is to place the two layers of insulating glass installed with aluminum strips on the rotating body. The rotating body is equipped with 4 telescopic support arms to support the glass. The glass is sucked by the suction cup, and the second layer of sealant is applied by rotating. The connector on the processing table fixes the sealant coating tube so that the sealing outlet of the sealant coating tube is against the side wall of the insulating glass for sealant application. When the insualting glass rotates, the insulating glass will push up the sealant coating tube and pass through the connecting piece that can be moved in the moving groove allows the sealant coating tube to move back and forth with the rotation of the insulating glass so that the sealing outlet of the sealant coating tube can always be against the side wall of the insulating glass for the glue coating operation. Continuous without interruption to improve sealant sealng efficiency. After applying sealant, step on the air foot switch and the suction cup will release suction to remove the glass.

Features & Advantages:

1. The LJZT02 insulating glass rotary coating table is a workbench used to apply two-component sealant or structural glue during the production of grooved aluminum insulating glass or curtain wall glass.
2. The support arm can be telescopically adjusted according to the size of the glass. It has a two-level lifting function and can adapt to different sizes of glass to play a supporting role.
3. There is a vacuum suction cup in the support device, so manual support is not required when applying glue; the operator uses a foot switch to control the lifting and rotation of the glass to complete the edge sealing work of the glass. The operation procedure is simple and the use efficiency is high.
4. Special equipment for applying secondary sealants on grooved aluminum insulating glass. The worktable can be rotated in 90-degree steps.
5. Using advanced indicator lights, knob switches, contactors, and other electrical components, the performance is stable.

Main Technical Parameter
