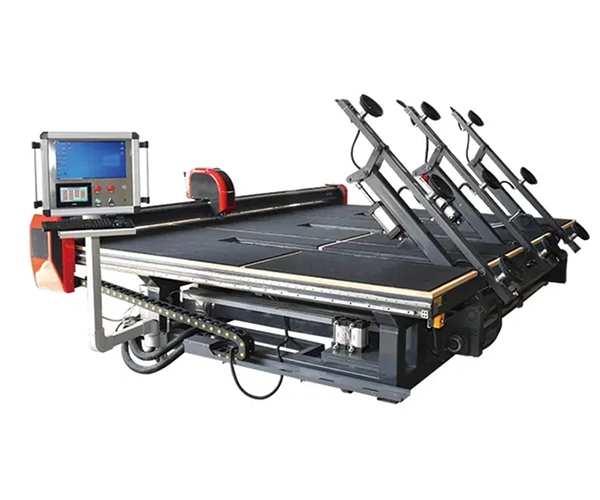

Fully Automatic All-in-one Glass Loading and Cutting Machine

Description

fully automatic all-in-one glass loading and cutting  machine integrates loading, air-floating breaking, linear cutting, and special-shaped cutting. It occupies a small area, is simple and safe to operate, saves labor, and can be commanded by the remote control to walk freely in the workshop. The advanced mechanical structure is equipped with Baolun cutting and system optimization software, using Japanese Yaskawa/Inovance servo motors and dual motor drives, which greatly improves the stability of the cutting machine and the optimization rate of glass cutting quality. Realize fully automatic glass loading, automatic cutting, automatic positioning, automatic optimization, and breaking operations. The product is fast, high-precision, small investment, and quick results, making it the first choice for small and medium-sized glass companies.

The electrical part of the fully automatic glass loading and cutting machine

1. Use PC access for control, Microsoft Windows interface.
2. Voltage: 380V/50Hz. The equipment is equipped with a voltage-stabilizing device.
3. Motor: Japanese Yaskawa servo motor.
4. Professional supporting cutting software (used under the WINDOWS operating interface).
5. Bring hundreds of cutting libraries. (Convenient for drawing and operation)
6. Compatible with AUTO CAD drawing software.
7. Optimization software (optional), directly compatible with cutting software.
8. (The cutting glass size can be directly input, and the cutting will be carried out directly after fully automatically optimizing the cutting. There is no need to optimize before CAD drawing with automatic correction function. Ensure cutting accuracy.
9. Cutting path selection function. Ensure cutting speed is achieved.
10. Origin correction function. The origin of the secondary device can be set.
11. Operation input: keyboard and mouse. Chinese conversation interface
12. Suitable for cutting straight, circular, and special-shaped glass of various thicknesses

Benefits & Advantages

1. Cutting knife holder of the all-in-one machine for loading and cutting: the knife head can rotate 360 degrees, and can cut up and down (can accurately cut any straight line and various special-shaped glass).
2. The table top of the all-in-one loading and cutting machine is made of waterproof high-density panels. Effectively protects against moisture.
3. automatic all-in-one glass loading and cutting machine left: Imported industrial felt, which can be anti-static and reduce glass scratches.
4. Oil supply method of the film loading and cutting machine: automatic oil filling
5. CAD optimization software (optional) has the function of lowering the knife limit protection. With more than 2,000 cutting libraries. (Convenient for drawing and operation) Compatible with AUTO CAD drawing software. The optimization software is directly compatible with the cutting software.
6. Automatically adjust the cutting knife pressure, fast, accurate, and stable.
7. Special-shaped cutting is automatically pressurized, which can quickly and effectively ensure the cutting effect.
8. The all-in-one loading and cutting machine has an automatic adjustment function for special-shaped cutting knife pressure to ensure good cutting results.
9. Special-shaped template scanning: It has the function of scanning various (including special-shaped) templates point by point and converting them into CAD graphics.
10. Chinese operation interface: Man-machine dialogue should use a full Chinese menu.
11. Special-shaped cutting: The equipment can accurately and automatically cut any straight lines, diagonal lines, or special shapes.
12. Stroke protection: The stroke of the equipment has both mechanical and electrical protection.
13. Cutting pressure adjustment function: Any cutting pressure adjustment can be adjusted directly through the keyboard without manual operation.

How to use the automatic all-in-one glass loading and cutting machine

1. When the loading and cutting all-in-one machine is in use, the power supply should be unplugged first when plugging and unplugging the computer and control cards and other equipment; the shell of the computer or glass cutting machine should be grounded to ensure safety; when the machine is not working, please Turn off the power in time and unplug the power plug when not in use for a long time;
2. Turn on the power, perform the zero return operation, and then try various functions manually;
3. When loading a picture, make sure that the loaded picture is within the cutting range;
4. Before cutting, check the glass to be cut. There should be no white spots or scratches on the appearance;
5. When clicking to start cutting, make sure there is no one next to you in the y direction;
6. Wait until the cutting is completed before performing other non-emergency stop operations;
7. After use, clean the countertop in time to prevent glass shards from scratching the countertop.

Features of automatic all-in-one loading and cutting machine

1. Due to the use of metal material as the steel core, the rigidity of the cutting blade is improved, making it more suitable for deep cutting.
2. The excellent wear resistance of the working layer gives the cutter body a long service life.
3. Rich types of binders enable the selection of more matching cutting blades for different processing objects.
4. Precise control of diamond abrasive grains and concentration enables the blade to have good sharpness during the cutting process, and the cutting surface has the characteristics of high smoothness and good verticality.
5. Precise processing methods ensure that the geometric dimensions of the blade have high precision.
