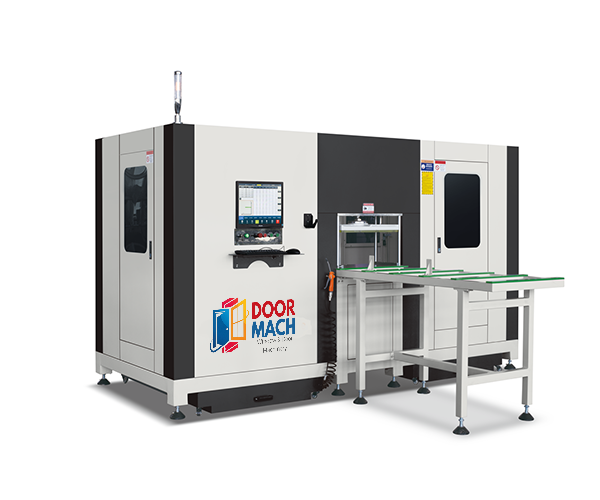

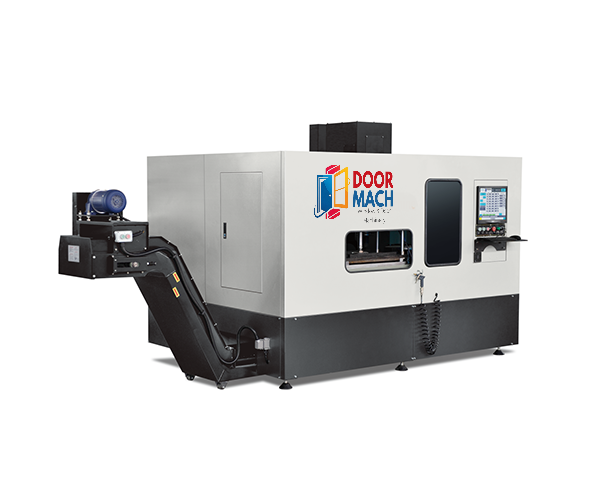

CNC 3 Axis End Milling Machine

Description

This advanced 3-axis CNC end miller is designed for the high-precision processing of aluminum and PVC profile end faces, step surfaces, and mullion connections. By utilizing 3-axis interpolation, the machine eliminates the need for custom cutter sets, significantly reducing tooling costs and setup time.

Key Features and Advantages

• Universal Tooling System (Cost Saving): unlike traditional machines that require specific cutter blades for each profile shape, this machine uses a single set of blades fixed to a high-speed spindle. The CNC program moves the blade in three axes (X, Y, Z) to cut any profile shape, eliminating the need to purchase or change cutters for different jobs.

• Precision Servo Control: The feeding system is driven by high-torque servo motors. This allows for fully adjustable speed and positioning, ensuring smooth, chatter-free cutting performance and high dimensional accuracy.

• High-Volume Batch Processing: The machine is capable of processing multiple profiles of the same cross-section simultaneously in a single cycle, regardless of their individual lengths. This feature drastically increases production throughput.

• Simplified Operation: Complex processing tasks are handled automatically by the CNC program. The operator simply selects the profile parameters, ensuring consistent quality without requiring advanced manual skills.

• Enhanced Safety and Noise Control: The machine features an optional full-enclosure design (safety shield). This isolates the machining zone, protecting the operator from debris and significantly reducing operational noise levels.
