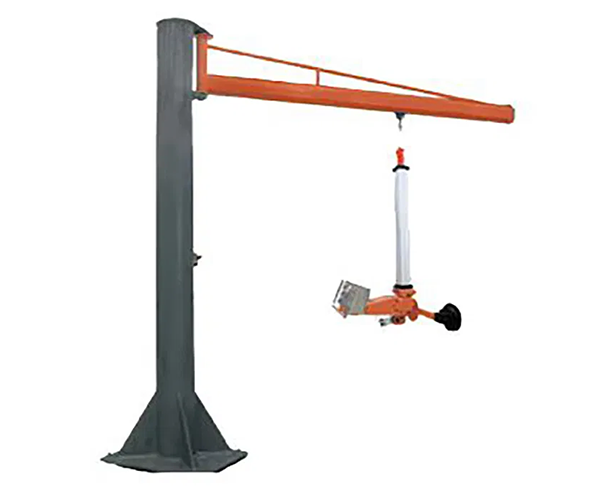

Cantilever Crane Loading Machine Vacuum Glass Lifter Equipment

Description

Pneumatic Glass Handing Manipulator Loading Lifter Equipment is operated by using compressed air. The device does not use electricity and is safe and reliable, easy to operate. It is an essential glass handling tool for a modern glass processing industry. The air flowing through the vacuum generator causes Vacuum Pressure to suck the glass. A cylinder stroke is acted by receiving the command signal from the compressed air in an inlet pipe. The device is commonly used for glass handling work in glass factory processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.

enefits & Advantages

1. The vacuum electric suction cup is used for the handling and installation of curtain wall glass and is generally used with cranes and hoisting trucks.

2. Two batteries are 12V DC (one of them is spare)

3. Charger: 110V / 240V /380V 50HZ / 60HZ, optional single-phase delivery

4. The carrying capacity of the electric suction cup for the curtain wall is 400kgs/600kgs/800kgs (three models are optional)

5. According to process requirements, a power mechanism can be added to realize the function of 90°-180° flip/rotation of the workpiece. The control method can be manual control/electric control/remote control/automatic control. It can also be used as a manipulator and robot execution module to realize automatic and intelligent handling.

6. The equipment assembly is equipped with overseas imported vacuum pumps, valves, switches, and some important spare parts. Including optional American Thomas vacuum pump or Harmony vacuum pump, original imported CSB battery, Japanese SMC one-way valve, optional imported silicone suction cup, pneumatic components using Taiwan Airtac, etc.

7. Stable performance, easy to maintain, fast and simple.

8. There are suction cups made of silica gel (oil-resistant, slip-resistant, corrosion-resistant; nitrile rubber suction cups can be selected according to actual needs, with stronger adsorption), which can form vacuum suction with the glass contact surface to generate vacuum

9. Adopt negative pressure safe vacuum air circuit, negative pressure digital display, compared with traditional instrument display, the sensitivity is increased by 30%, and the display is more intuitive

10. The suction cup can be adjusted and can be closed and opened separately.

11. The vacuum lifter is equipped with a buzzer and warning light device. In the case of power failure or vacuum leakage, optical and acoustic signals will respond to tell the operator to carry out emergency operations.

12. The vacuum lifter is equipped with a tank and pressure switch display, when the power is suddenly turned off, it can keep the workpiece from falling for 30 minutes.

13. There are 4 telescopic arms (optional), 4 suction pads with a diameter of 300mm, each suction cup can be moved on the beam, each suction cup can be closed by a separate ball valve, each suction cup can take off if The glass plates that customers want to process are small and can be operated as well. The same equipment can also process glass plates of different sizes.

14. The design of Jinan Kation vacuum cleaners has passed the European Union CE 13155 certification, and they are all CE-identified products.

The whole steel material shell design

Fully enclosed shell design, using Q345 manganese steel material, square tube welding, strong load-bearing capacity, safe and reliable, can be widely used in glass deep processing and transportation and glass curtain wall installation.

Adopts the imported vacuum pump

It can be equipped with American Thomas vacuum pump or imported brand Harmony vacuum pump, and imported CSB battery can be selected. The battery is energy storage and maintenance-free. There is no need to connect to a power supply during the glass deep processing.

The vacuum pressure compensation system

The equipment is equipped with a vacuum pressure compensation system, which can ensure that the entire vacuum system is maintained at a relatively constant safe pressure value during the glass handling process, and the use process is safer.

Equipped the pressure-maintaining function

The equipment is equipped with power-off device, pressure-keeping device and alarm device. After an unexpected power-off, the pressure-maintaining function can extend the emergency processing time and sound the alarm at the first time to ensure the safety and reliability of the use process

Equipped the digital display function

Optional Japanese imported digital display vacuum pressure switch, and digital display battery gauge, which could clearly and intuitively monitor the use of the glass lifter equipment.

Ameircan imported silicone suction cup

Main Technical Parameter
