Description

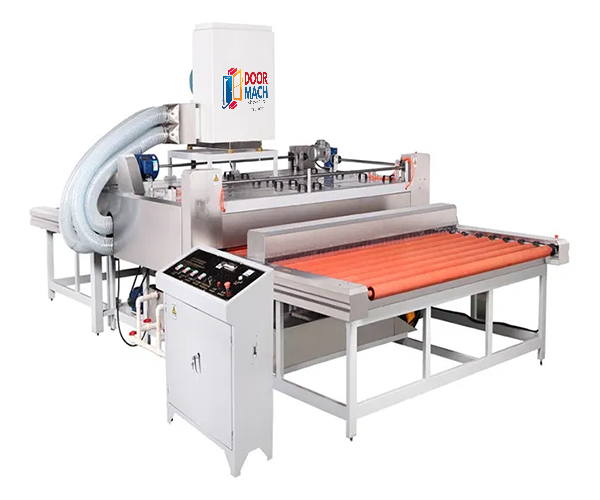

Automatic Horizontal Glass Washing and Drying Machine is a multi-purpose special washing machine for flat glass washing. It is specially designed for various tempering furnaces and laminated glass production lines. According to different purposes of users, the machine has roller brushes. , clear water circulation, high-pressure cold air, and other functions are combined and matched. The machine has the characteristics of stable and reliable performance, strong decontamination ability, clean, good air-drying effect, easy maintenance, and convenient adjustment, and can be selected by users. The overall structure of the machine is composed of four parts: an inlet segment, a washing segment, air-drying segment, and an output segment.
The main transmission system of the machine adopts bevel gear transmission, frequency conversion speed regulation, digital display, stable transmission, and convenient maintenance.
The conveying rubber roller of the whole machine adopts the overall rubber structure of vulcanized rubber (no contact with acidic liquid is strictly prohibited).
The washing system and air-drying system adopt an electric overall lift, and the maximum internal opening is 350 mm, which is easy to operate.
This machine is suitable for ordinary glass washing and is more suitable for tempering, coating, Low-E Glass, laminating glass, and vacuum processes with high cleaning requirements.
Characteristics
Horizontal structure, simple operation. The machine frame adopts heavy thickness aluminum alloy to avoid to be out of shape when working for a longtime. With stainless steel water sink and high pressure pre-spraying (high pressure pump) in loading ( in-feed), the rubber roller can pre-wash automatically to clean out the glass powder or scraps. Brush: The top and bottom brushes transmit by 1 motor respectively. Water tank (with heater): 2 water tanks total, 1 for pre-wash, another for washing section. Blower: Low noise and vibration. Conveying adopts frequent converter, digital display and convenient operation, which do good to connect with double edging line, hollow glass line, safety glass line, etc. Table rollers adapt superior rubber and transmitted by gear wheel which makes a stable working. Side covers and tanks and any other water touched material adopt stainless steel 201. Washing and Drying section can be lifted to Max. 400 mm by adjustment on electrical board with 4 legs(corners) increasing through motors and encoder. 2 pairs air knives adopt advanced technique device, large power and quick air dry.
Main Technical Parameter
| Item. |
Parameter.
|
| Max. width | 2500mm |
| Min. size | 400*400mm |
| Glass thickness | 3~28mm |
| Working table height | 900mm±30mm |
| Blower power | 22kw |
| Total power | 32kw |
| Weight | 3000kg |
| Dimension | 5700*3300*2500mm |
| Low-e require | Yes |
| Water heater | Yes |
| Processing speed | 0.5~12m/min |
| Processing-speed suggestion as follow: | |
| 4mm~8mm thickness, speed suggested to 8-12m/min | |
| 10mm~12mm thickness, speed suggested to 4~6m/min | |
| 15mm~19mm thickness, speed suggested to 2-3m/min | |
| 20mm and more, speed suggested to 0.5-1.5m/min | |
| Item. | Spec. |
| Main machine frame | Aluminum alloy + steel, no deformation. |
| High pressure pump | China famous brand: Shanqing |
| Frequency converter of conveying | China famous brand: Kailida |
| Brush motor | China famous brand: Jinxing |
| Bearing | China famous brand: HRE |
| Electrical Appliance | Schneider |
| Rubber roller | NBR Perduran(sour liquid forbiddion), stainless steel 304 shaft |
| Water tank, sink, side covers, all parts touch water | Stainless steel 201 |
| PLC | Siemens |
