Product Description

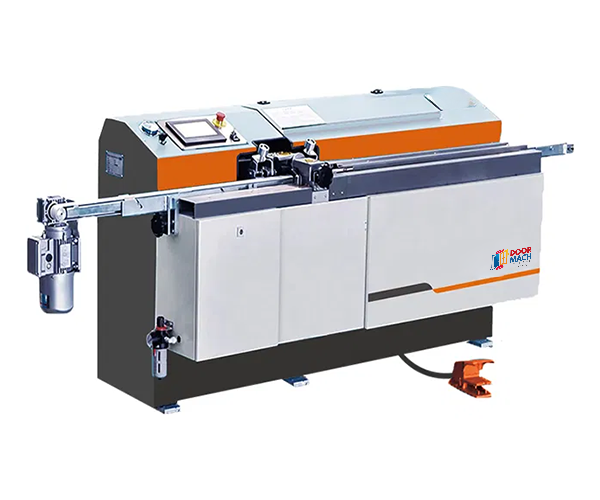

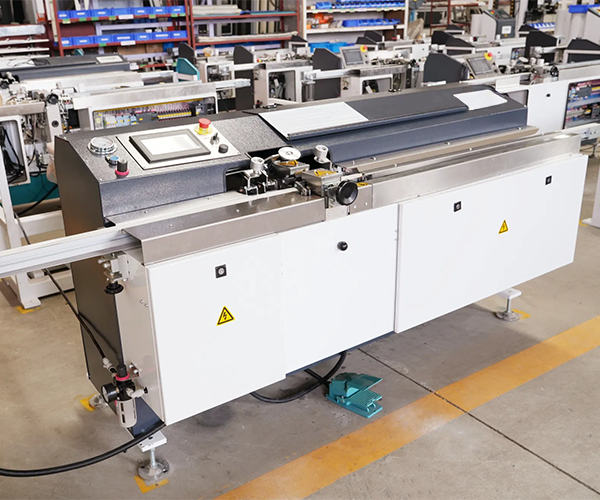

Structure and composition of automatic insulating glass butyl extruder coating machine
1. Transmission device:
It is composed of transmission motor, transmission, transmission gear train, conveyor belt, etc.
2. Heating system:
Composed of heating elements, thermocouples, etc.
3. Butyl extrusion device:
It consists of an oil cylinder, a glue extrusion piston, a glue cylinder, a glue head seat, a glue extrusion head, etc.
4. Hydraulic system:
It consists of oil pump, motor, oil tank, pressure gauge, electromagnetic reversing valve, pressure control valve, oil filter and corresponding pipelines.
5. Pneumatic system:
It consists of air source processing components, solenoid valves, throttle valves, pressure regulating valves, cylinders, joints and pipelines.
6. Electronic control system:
It consists of electrical detection components, thermal relays, time relays, control panels and operating switches.
Advantages & Benefits
-
Controlled by PLC System.
-
Digital Display system can show you the quantity of the glue automatically.
-
Butyl spreading is well-proportioned and the linearity is good.
-
Temperature and pressure can adjust automatically. Also time of pre-heating can be set, then the machine can be turned on and off automatically.
-
Adopting the imported hydraulic and pneumatic supercharging system makes sure of the stability and continuity of the butyl extruder coating.
-
The butyl extruder coating jar warning system will make alarm when glue material is used up.
-
Advanced device guarantees and best spreading effect on the arc aluminium frame.
The Butyl Head
The Germany Siemens PLC System
The Stainless Steel Work Surface
Could produce the special sharps
The hydraulic system
Equipment Inspection and Installation
1. After the equipment is transported to the user’s site, unpack it and check for transportation damage, loose connections, falling wiring, etc. If there is no damage, it can be installed.
2. The equipment should be installed on a concrete foundation, and the equipment should be leveled. When leveling, the plumb line of the oil tank and the rubber tank should be used as the benchmark, so that the angle error between the center line of the oil tank and the rubber tank and the plumb line is not greater than 0.1°..
3. The equipment uses a 380V three-phase four-wire power supply with a rated load of 7.5Kw. The manufacturer must ground the equipment reliably. The grounding wire must be yellow and green two-color twisted wire. The cross-sectional area of the grounding wire must not be less than 2.5mm2. After grounding, the machine The ground resistance between the main body and the main ground point should be less than 4Ω.
4. The equipment uses clean and dry air with an air source pressure of 0.6MPa and dewatered air.
5. Check whether rainwater and impurities is leaking into the oil tank of the hydraulic station. (To ensure transportation safety, the hydraulic oil in the tank has been drained after the equipment is tested and before leaving the factory.) When refueling, unscrew the upper cover of the breathable cover and add anti-wear hydraulic oil according to the oil mark instructions. Use 46# anti-wear hydraulic oil in summer; use 32# anti-wear oil in winter. Other liquid media are not allowed to be used as the working oil of the power unit.
